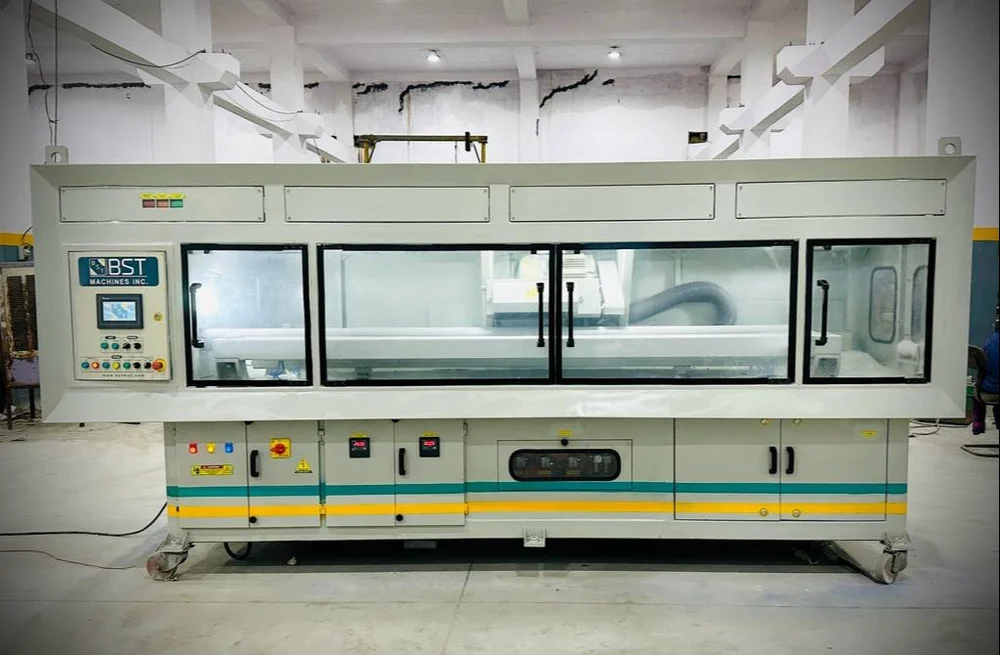

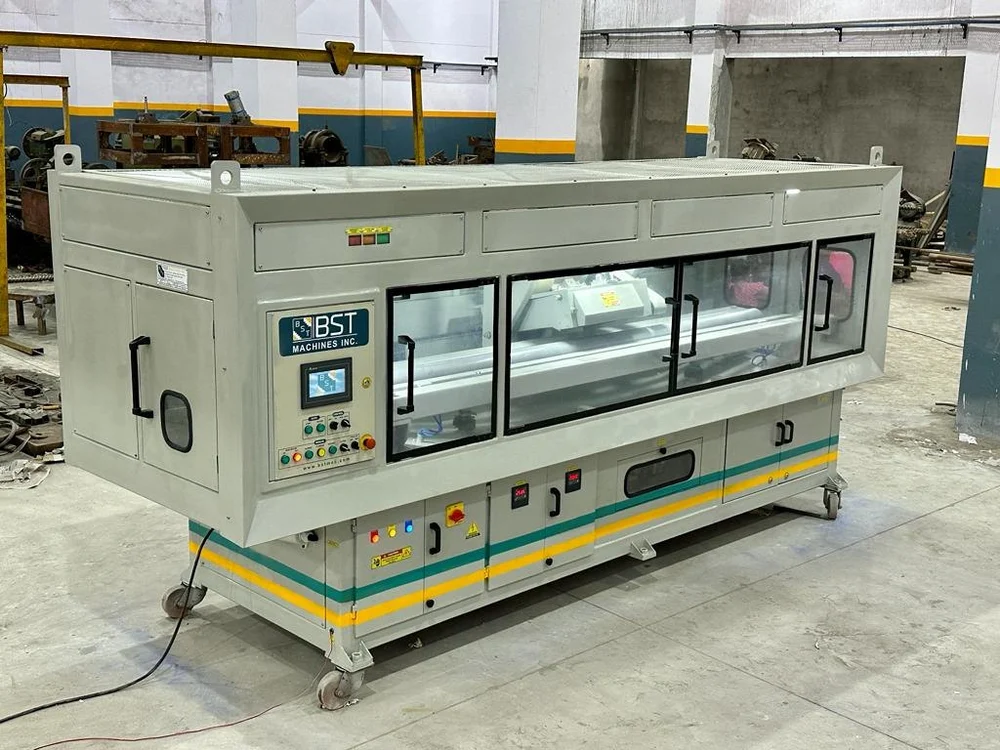

Completely Automatic With Cutting 2 Pipes At A Time .
Optimum Functionality And Reliable Performance.
High Efficiency "Dust Jet" Type Vaccum System For Dust And Chip Collection.
Low Power Consumption As Compared To Output.
Built With Advance Safety Features Which Prevents Accidents And Mishaps.
Trouble Free Opertions.
Hmi Display To Access And Record All The Data.
Auto Clamping Of Pips Through Pneumatic Cylinders.
| MODEL | BST-TASM-40-110 | BST-TASM-50-200 | BST-TASM-75-250 | BST-TASM-110-315 |
|---|---|---|---|---|
| PIPE RANGE | 20-110MM | 50-200MM | 75-250MM | 110-315MM |
| CONNECTING LOAD | 18.6KW | 26KW | 26KW | 26KW |
| MAIN MOTOR | 10HP + 10HP | 15HP + 15HP | 15HP + 15HP | 15HP + 15HP |
| PIPE LENGTH | 3/6 METER | 3/6 METER | 3/6 METER | 3/6 METER |
| CUTTING INDEXING | 2-3-5 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-7 SIDE (OPTIONAL) |
| CUTTING SLOT WIDTH | 0.2-1.5MM | 0.3-2MM | 0.3-2MM | 0.5-3MM |
| CUTTING STOCK | 300 + 300MM | 350 + 350MM | 350 + 350MM | 400 + 400MM |
| BLOWER | 3HP | 3HP | 3HP | 3HP |
Heavy Duty Structure With Easy Loading And Unloading Hook Bars.
Low Power Consumption.
Low Cost Maintenance Machine.
Easily Operatable.
Adjustable Slot Depth As Per The Requirement.
Operations Controlled By Proxy Sensors.
| MODEL | BST-TASM-40-110 | BST-TASM-50-200 | BST-TASM-75-250 | BST-TASM-110-315 |
|---|---|---|---|---|
| PIPE RANGE | 40-110MM | 50-200MM | 75-250MM | 110-315MMM |
| CONNECTING LOAD | 9.3KW | 15KW | 15KW | 18.6KW |
| MAIN MOTOR | 7.5HP | 15HP | 15HP | 20HP |
| PIPE LENGTH | 3/6 METER | 3/6 METER | 3/6 METER | 3/6 METER |
| CUTTING INDEXING | 2-3-5 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-4-5-6-7 SIDE |
| CUTTING SLOT WIDTH | 0.2-1.5MM | 0.3-2MM | 0.3-2MM | 0.5-3MM |
| CUTTING STOCK | 250MM | 300MM | 300MM | 300MM |
Hmi panels for precise controlling and customisation
| MODEL | BST-HASM-40-110 | BST-HASM-50-200 | BST-HASM-75-250 | BST-HASM-110-315 | BST-HASM-200-400 | BST-HASM-400-650 |
|---|---|---|---|---|---|---|
| PIPE RANGE | 40-110MM | 50-200MM | 75-250MM | 110-315MM | 200-400MM | 400-650MM |
| CONNECTING LOAD | 11.2KW | 16.4KW | 16.4KW | 20KW | 24KW | 24KW |
| MAIN MOTOR | 10HP | 15HP | 15HP | 20HP | 25HP | 25HP |
| PIPE LENGTH | 3/6 METER | 3/6 METER | 3/6 METER | 3/6 METER | 3/6 METER | 3/6 METER |
| CUTTING INDEXING | 2-3-5 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-6-7 SIDE | 5-6-7-8 SIDE | 3-4-5-6-7-8 SIDE |
| CUTTING SLOT WIDTH | 0.2-1.5MM | 0.3-2MM | 0.3-2MM | 0.5-3MM | 0.5-3MM | 0.5-3MM |
| CUTTING STOCK | 300MM | 350MM | 350MM | 400MM | 400MM | 400MM |
| BLOWER | 3HP | 5HP | 5HP | 5HP | 5HP | 5HP |

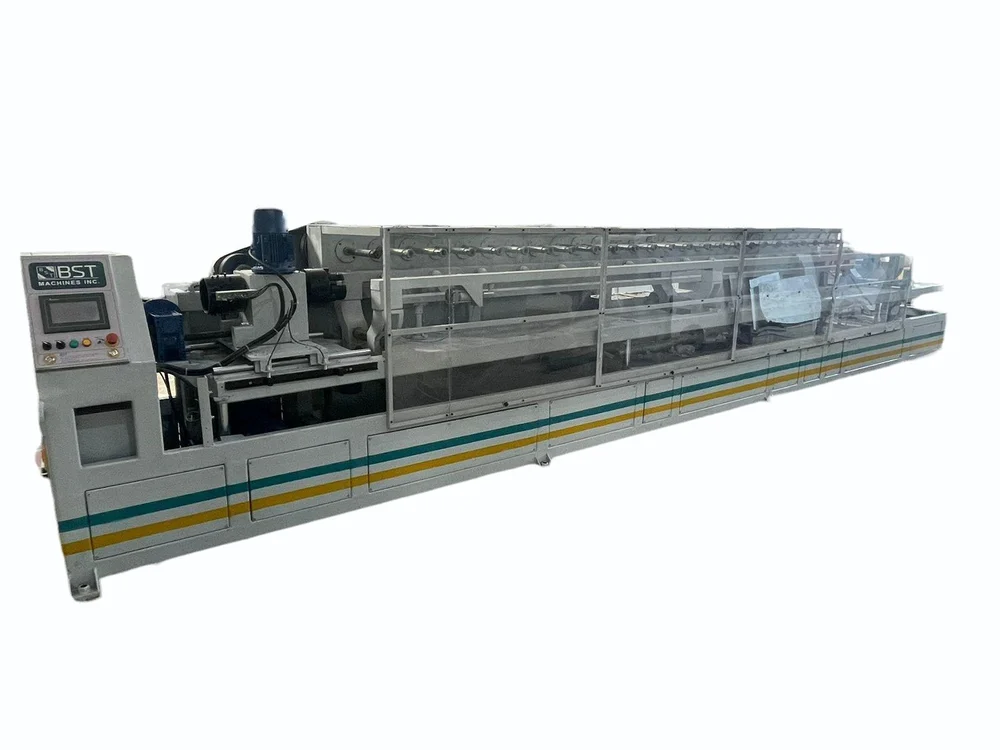

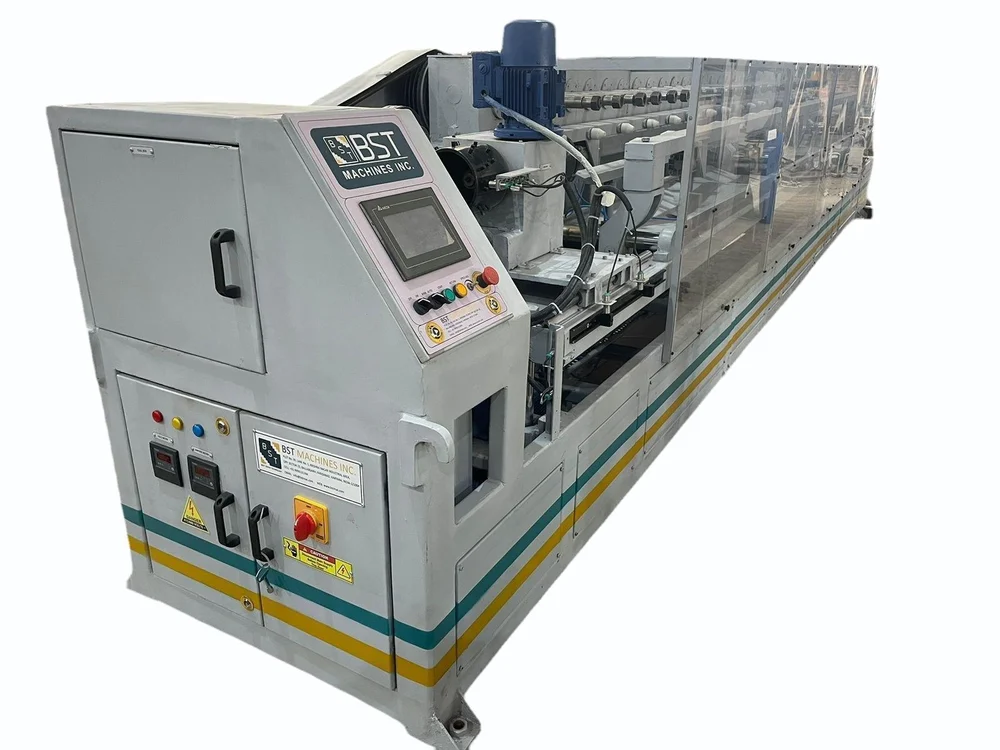

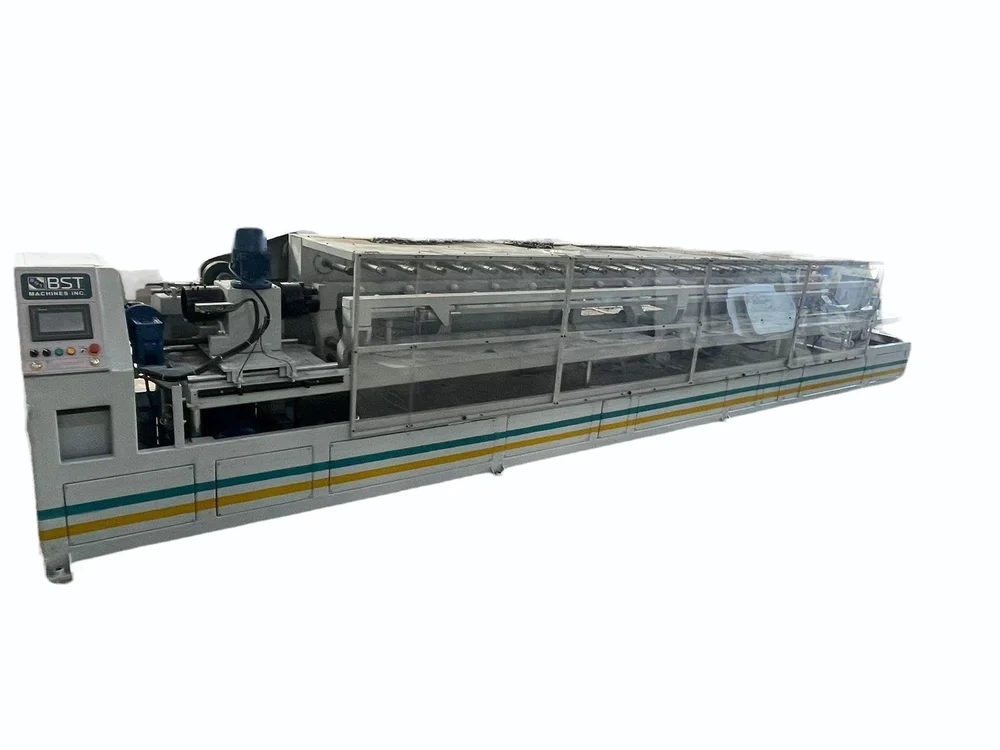

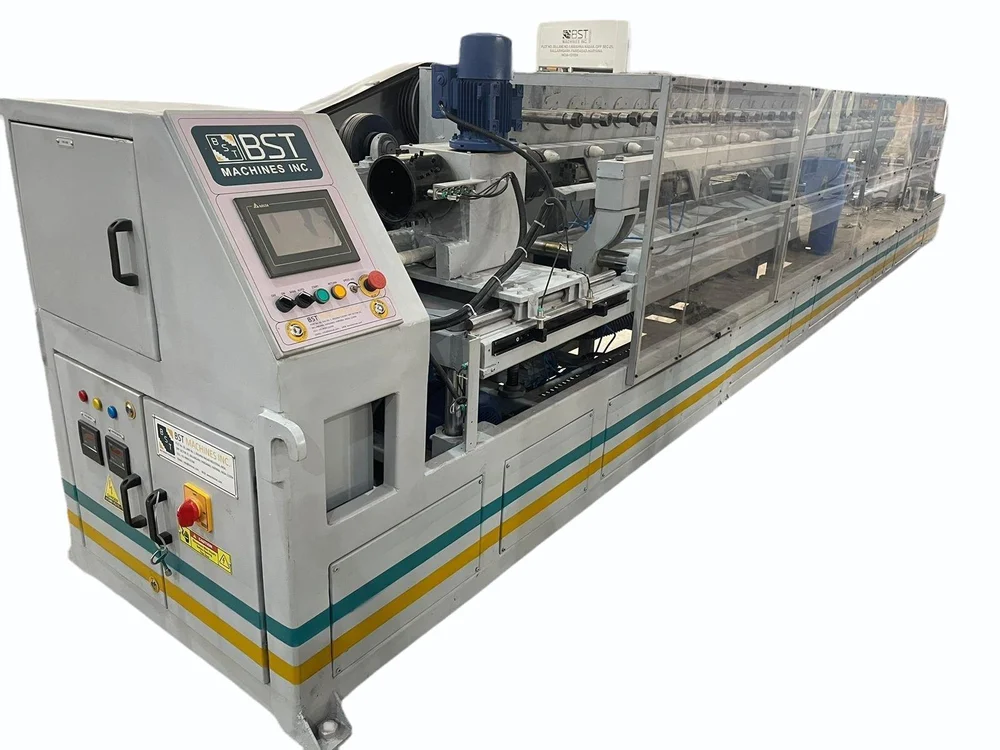

Vertical Automatic Slotting Machine for PVC Pipe is an industrial machine designed to cut slots vertically on PVC pipes with automated precision. The vertical configuration ensures stable positioning of the pipe during the slotting process, enhancing accuracy and efficiency.
Vertical Pipe Placement: The PVC pipe is positioned vertically for stable and accurate slotting.
Automatic Operation: The machine handles pipe loading, slotting, and unloading without manual intervention.

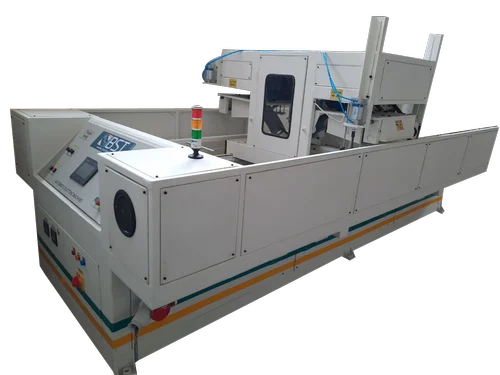

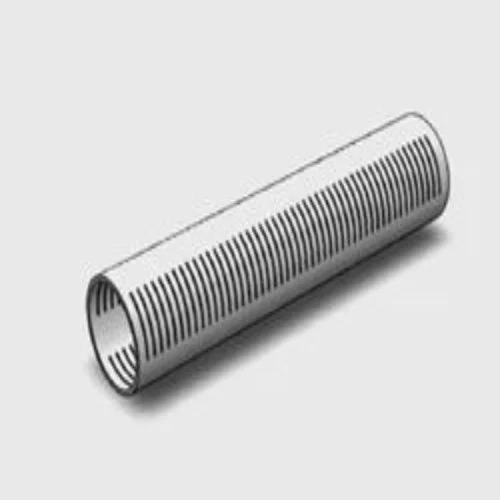

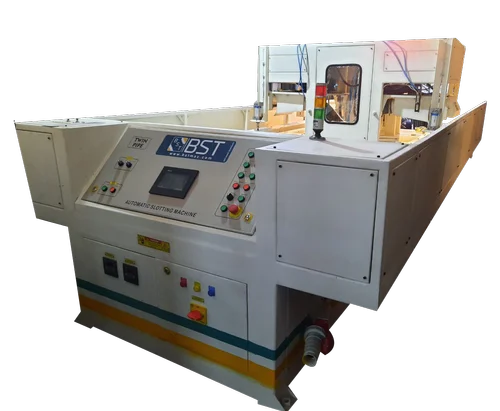

PVC Pipe Automatic Slotting Machine is a specialized industrial machine designed to cut evenly spaced slots or perforations into PVC pipes. These slots are commonly used for applications such as drainage, filtration, and underground water management.
Applications of PVC Pipe Slotting Machines:Drainage Pipes – Slotted PVC pipes are used in agriculture, road drainage, and stormwater management.
Borewell Casing – Helps in groundwater filtration by allowing water to pass through while keeping out sand and debris.
Filtration Systems – Used in industrial and irrigation filters
Features of PVC Pipe Automatic Slotting Machine:Automated Slotting – The machine precisely cuts slots at regular intervals along the length of the pipe, ensuring accuracy and uniformity.
Adjustable Slot Dimensions – It allows customization of slot width, depth, and spacing based on the specific requirements.
High-Speed Operation – Designed for efficiency, it can slot multiple pipes in a short time.
CNC or PLC Control – Many modern machines are controlled via Computer Numerical Control (CNC) or Programmable Logic Controllers (PLC) for precision and automation.
Rotating Mechanism – Some machines rotate the pipe automatically for continuous slotting.
Minimum order quantity: 01 Piece

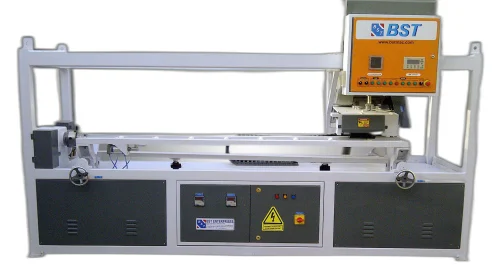

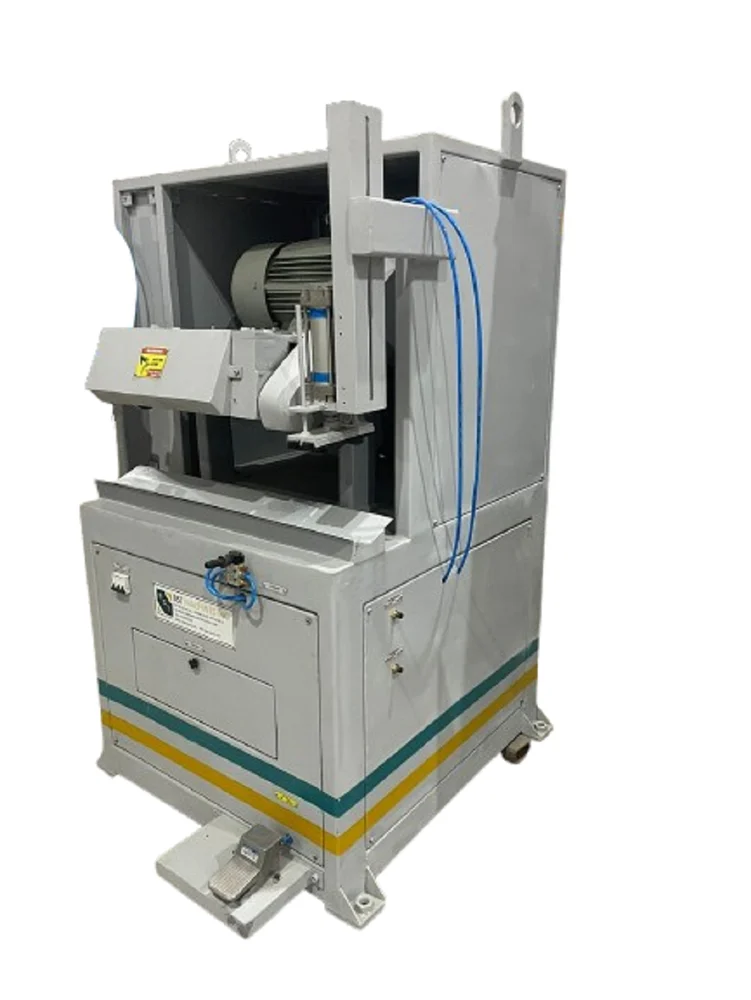

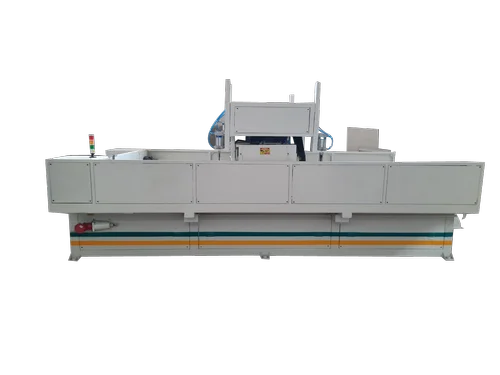

Manual Slotting Machine for PVC Pipe is a device used to create slots or cuts on PVC pipes. Unlike automatic machines, it requires manual operation to position the pipe and control the cutting process.
Operation: The operator manually feeds the pipe and controls the cutting tool.
Cutting Mechanism: Uses blades or cutters to create evenly spaced slots.
Adjustable Settings: Allows customization of slot size, depth, and spacing.
Adjustable Slot Dimensions – It allows customization of slot width, depth, and spacing based on the specific requirements.
Capacity: Suitable for small to medium-scale production.
We have established ourselves as one of the reliable Slotting Machine manufacturers as well as suppliers. Featured with rigid construction and smooth & vibration free operation, our PVC Pipe Slotting Machine is fabricated using high grade raw material.
Power of 5 hp Motor Make ABB

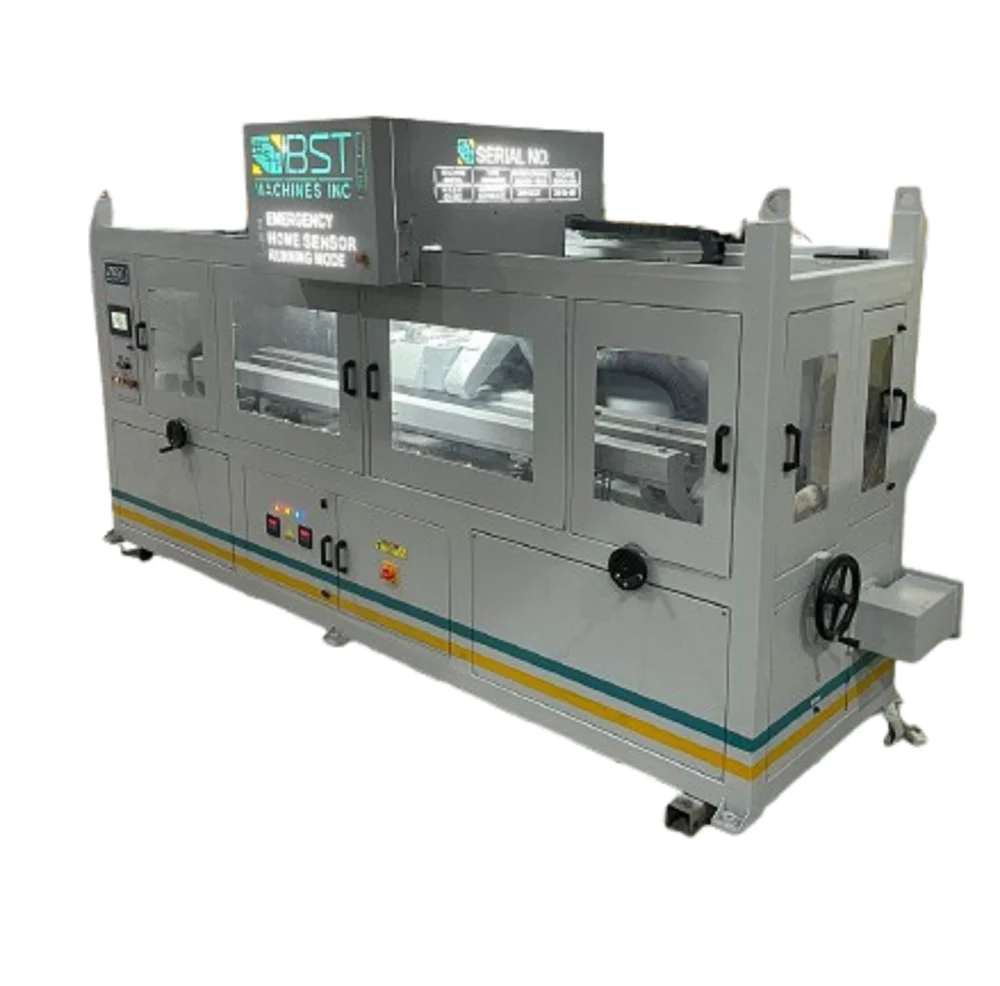

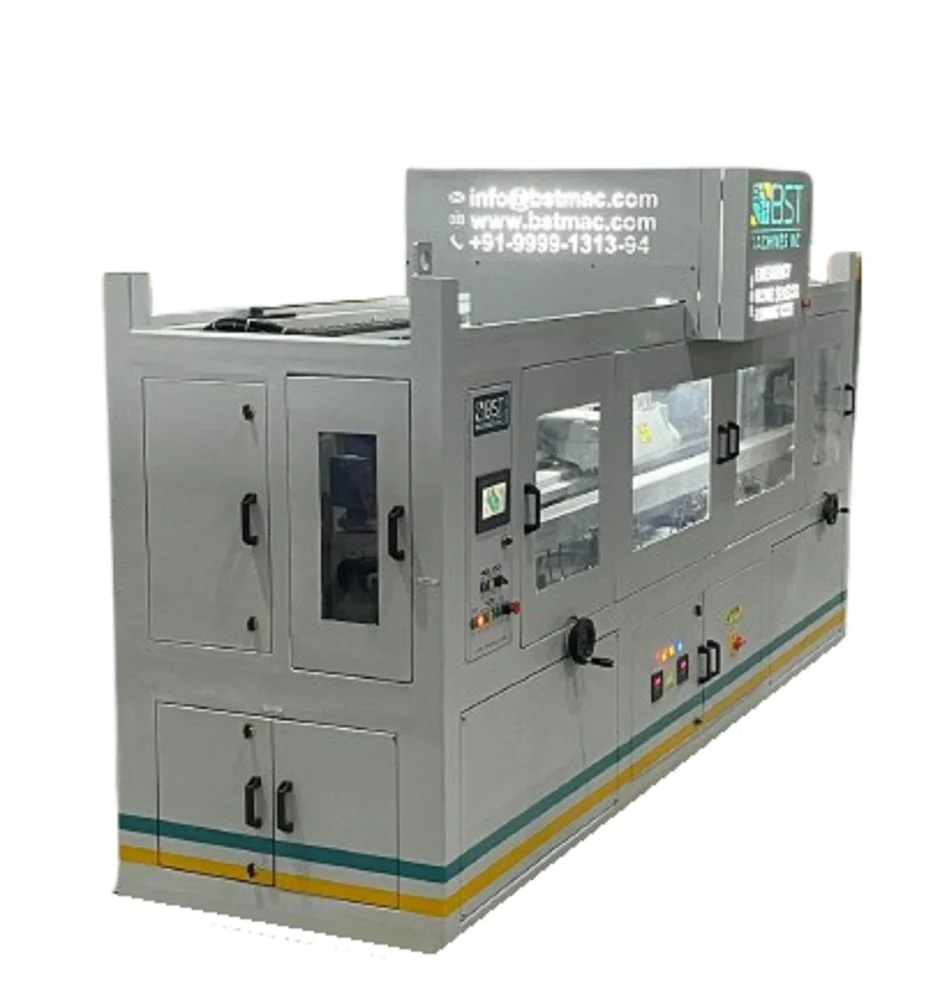

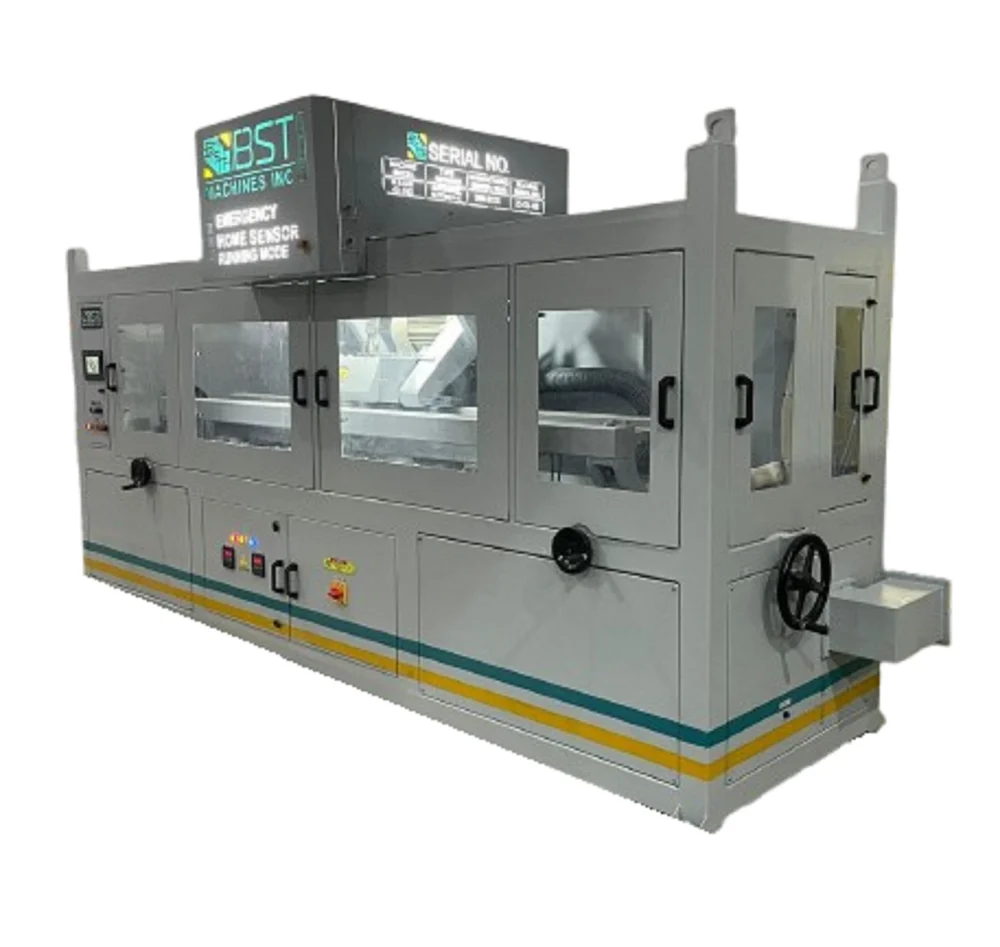

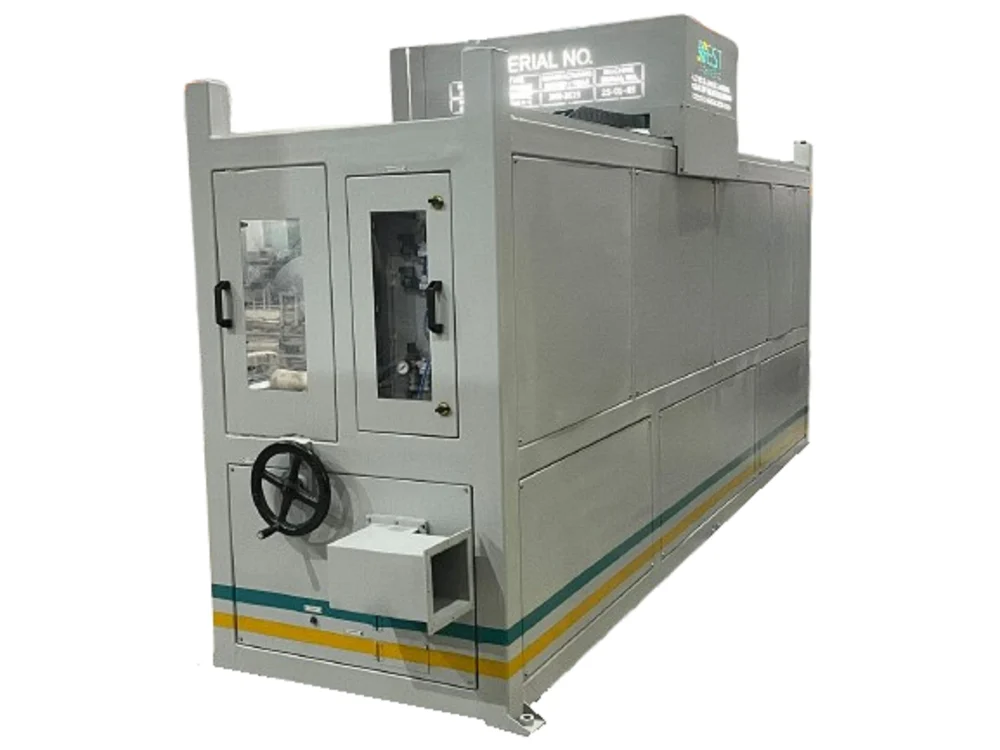

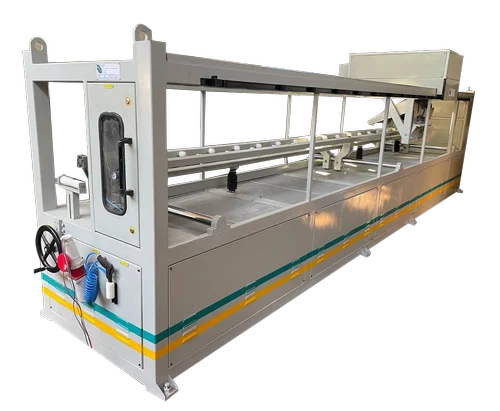

Highly Automatic Slotting Machine for PVC Pipe is an advanced industrial machine designed to automate the process of creating slots on PVC pipes with precision and speed. It minimizes manual intervention and increases production efficiency.
Key Features:Fully Automated Operation: The machine performs pipe feeding, slotting, and ejection automatically.
CNC or PLC Control: Equipped with computerized control systems for accurate and consistent slotting.
High Speed & Efficiency: Capable of handling large-scale production with minimal downtime.
Customization: Allows adjustment of slot size, depth, spacing, and pattern through software settings.
Adjustable Slot Dimensions – It allows customization of slot width, depth, and spacing based on the specific requirements.
Safety & Precision: Includes sensors and safety mechanisms for smooth and error-free operation.
Applications:Used in agriculture, drainage, borewell casing, and irrigation industries.
Ideal for mass production of perforated PVC pipes.
