A twin screw extruder is a closed barrel machine that is made up of two intermeshing, co-rotating screws that are mounted on splined shafts. Because the screws are tight and self-wiping, stagnant zones are eliminated throughout the process section. As a result of this, the system is extremely efficient and self-cleaning.Twin screw extruders can be used in polymer, chemical, and food industries for mixing a variety of consumer products like:
Extruders are used to precisely control processing conditions so that viscous substances can be extruded into high-quality structured products. Extrusion transforms these materials into plastic compounds, chemically modified polymers, textured food and feed products, cellulose pulps, and other products.
| MODEL | BST-52/18v | BST-52/22v | BST-52/25v | BST-65/18v | BST-65/22v |
|---|---|---|---|---|---|
| MAIN DRIVE | 11Kw. Ac | 15Kw. Ac | 18kw. Ac. | 18kw. Ac. | 30kw. Ac |
| LD. RATIO | 20 : 01 | 22 : 01 | 25 : 01 | 18 : 01 | 22 : 01 |
| MAX. OUTPUT | 120kgs/hr. | 150 kg /hr. | 170kg/hr. | 200kg /hr. | 260kg /hr. |

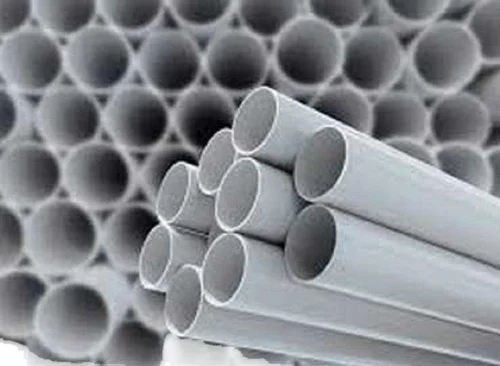

| PIPE RANGE | 20-110mm | 20-160mm | 25-180mm | 25-200mm | 50-200mm |
| CONECTING LOAD | 50kw. 50hz | 60kw. 50hz | 65kw. 50hz | 70kw. 50hz | 80kw 50hz |
